Smart Reusable Hydrocarbon Point Sensor
Smart Reusable Hydrocarbon Point Sensor
Fast response and re-usable, the FG-ODP Point Sensor is suitable for outdoor installation, as it is unreactive to water, IP68 marked and UV resistant.
Connected to a TTK alarm and monitoring panel, it alerts at a very early stage when in contact with hydrocarbon.
FG-ODP detects diesel fuel, jet fuel, gasoline, crude oil and many other hydrocarbon liquids. Detectors with low/intermediate/high levels of sensibilities are available to cover different leak detection requirements. Contact our team to get more insights on how to choose the appropriate detector.
Typical applications
- Oil storage tanks
- fuel supply pipes
- Generators
- Sumps, pits, basins, manholes
FG-ODP point sensor placed in a drain pit to detect leaked hydrocarbon floating on water at storage tank perimeter
 |
 |

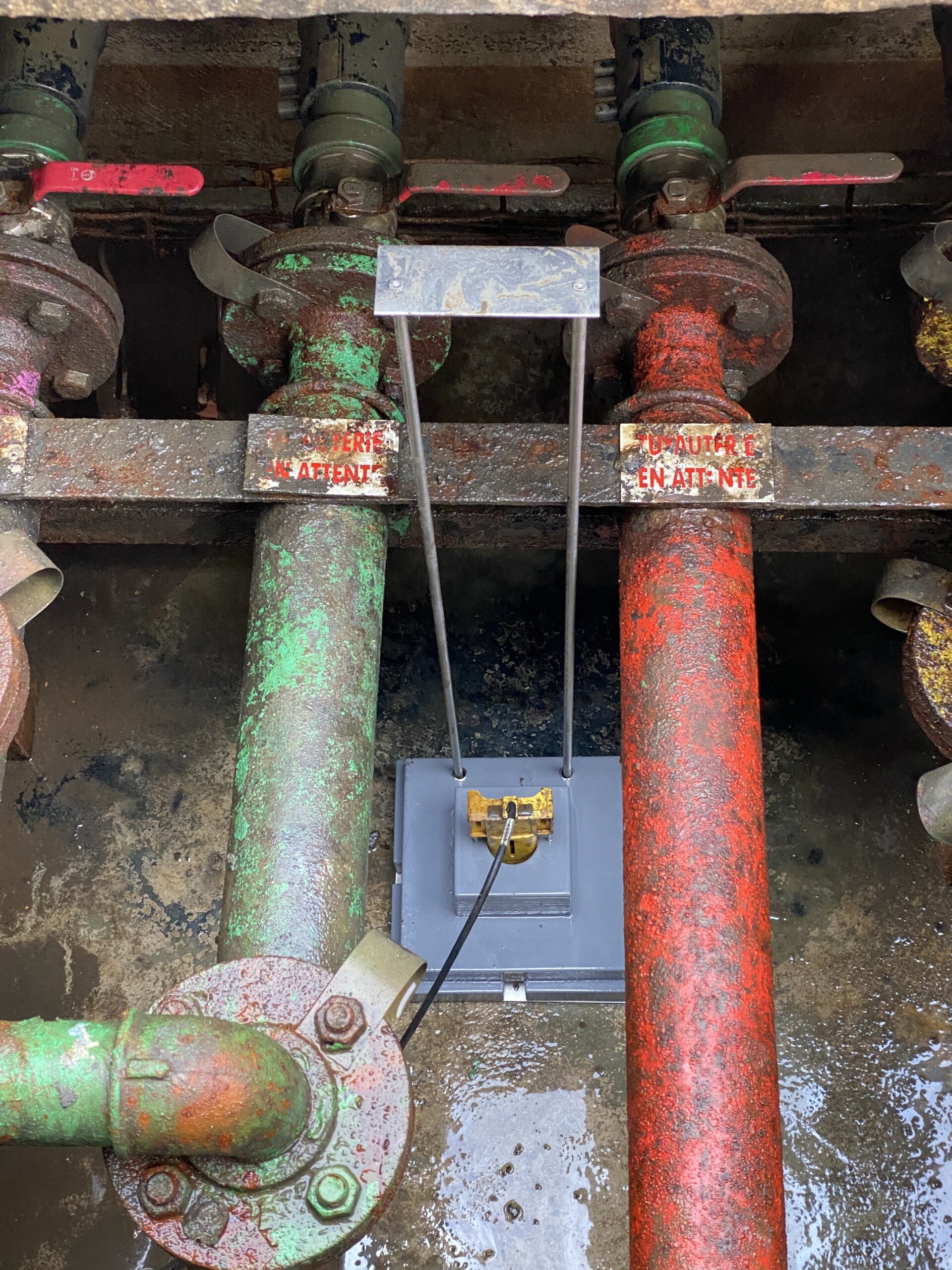

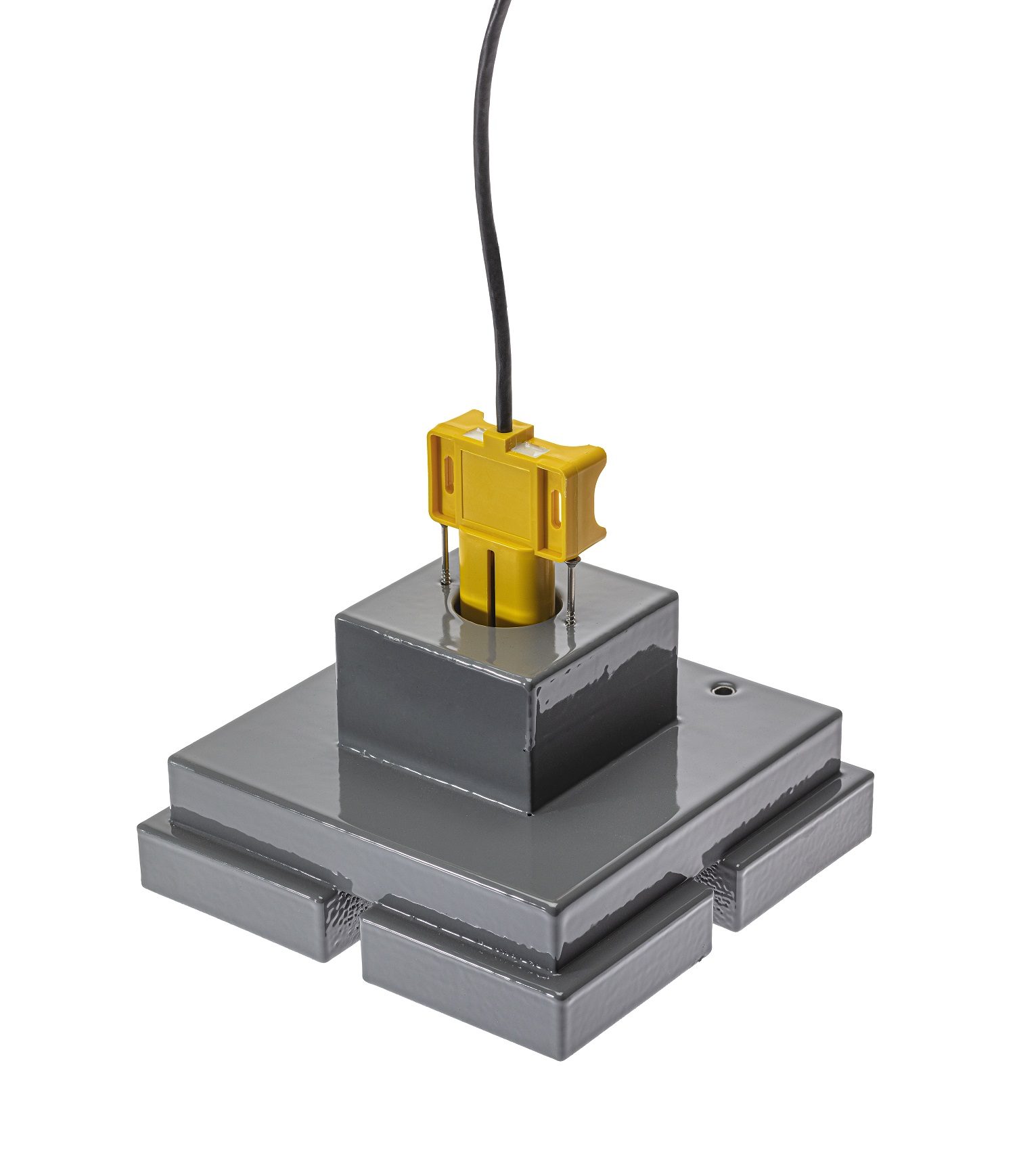

FG-ODP point sensor placed inside a floater to avoid contact with possible hydrocarbon iridescences inside a manifold chamber – retrofitting of a vehicle service station

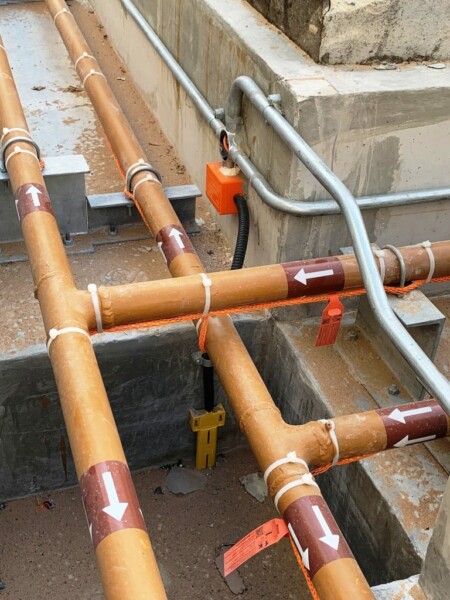

Fuel pipe network of a data center: FG-ODP point sensor placed in a sump on the fuel pipe culvert, where fuel leak may stagnate, to reinforce the protection of oil sensing cables.
Technical Advantages
- Reliable detection:
- Reactive to liquid hydrocarbons.
- Non-reactive to water, inorganic pollutants and external loads (pressure). UV resistant.
- Can be reset and reused, allowing reduced OPEX (operational expenditures) and testing leak detection under real conditions.
- IP68, suitable for outdoor installation
- Easy to install and remove.
- Suitable for Explosive Area Service
Compatibility
Fully compatible with all TTK hydrocarbon leak alarm panels and satellite devices.
System layout
FG-ODP can be connected to all TTK hydrocarbon leak alarm panels. Below is an example with FG-ALS4-OD:
For further design schematic, please refer to the design guide.
Product Details
Learn more about the hydrocarbon point sensor FG-ODP on the product page.
