Sense Cables

  • FG-EC - cable détecteur de fuites d'eau

Water Sense Cables

FG-EC

  • Digital Pin-Point Leak Location
  • Embedded Microprocessor
  • LED Status Indicator
  • Made in Low Smoke Zero Halogen Material
  • Detects Water and Base Liquids
  • Pre-connected in Standard Lengths

FG-EC Water Leak Detection Sense Cable

The FG-EC sense cable detects and pin-point locates water leak & base liquid leak at any point along the cable. It is designed to be connected on FG-SYS FG-NET and FG-BBOX. The typical applications are data centres, trading floors, high value and mission critical infrastructure.

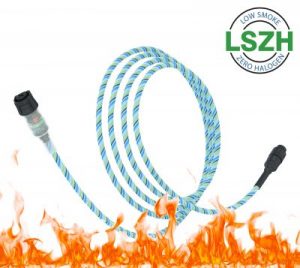

Each FG-EC sense cable is made with special Low Smoke Zero Halogen (LSZH or LS0H) materials, it emits limited smoke and no halogen when exposed to high sources of heat.

Features

  • Available in standard and pre-connected lengths of 3, 7 and 15 metres. They can be interconnected to provide an expandable network of leak detection.
  • Each FG-EC sense cables contain an embedded microprocessor, it intelligently monitors the cable status, it provides continuous real time communication to the TTK digital units.

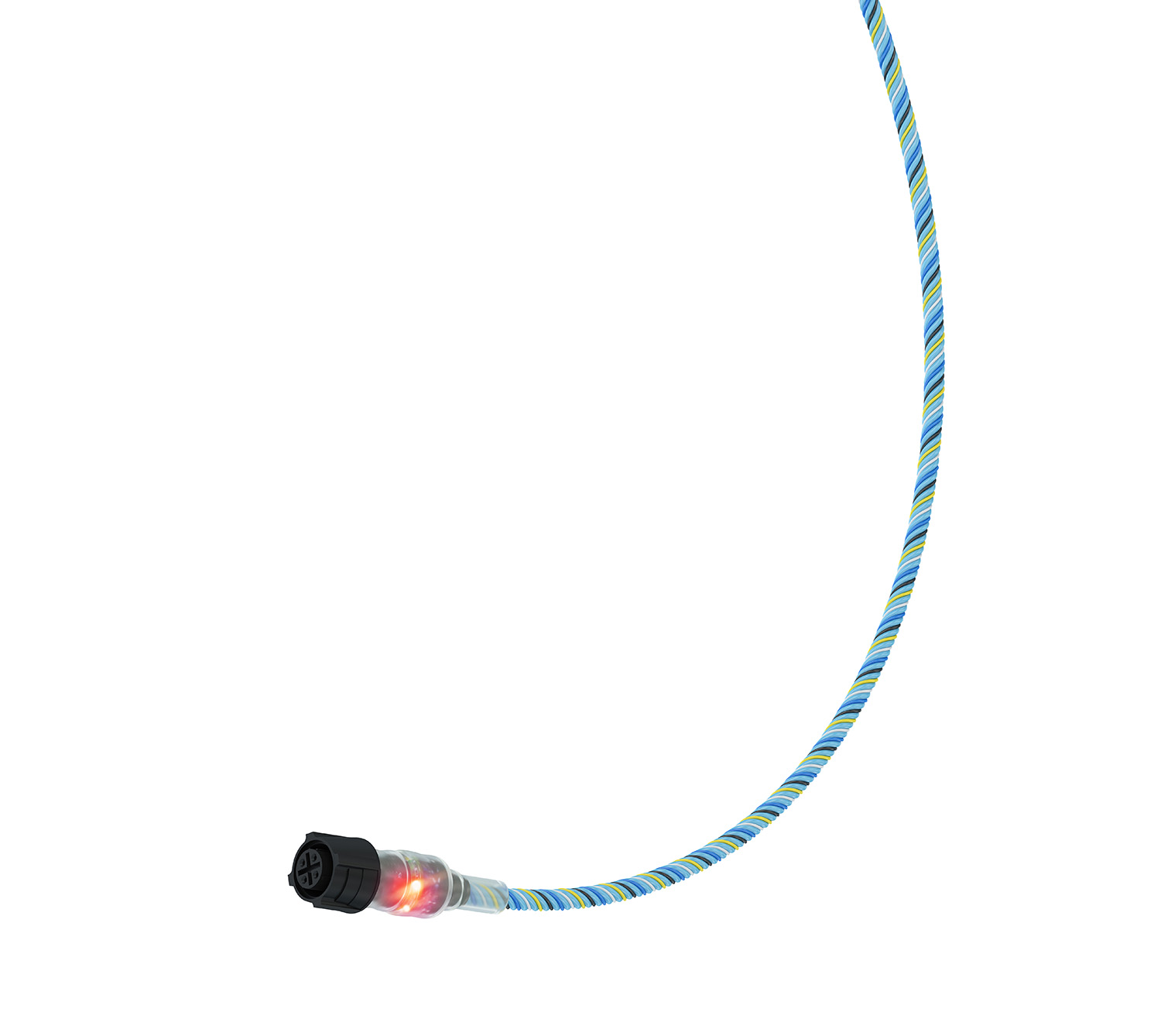

  • Each cable has a high visibility LED to provide quick green/red identification of the cable status:
    • Green LED: normal status, no alarm raised;
    • Red LED: leak detection on the cable;
    • LED off: cablebreak on this or any upstream cable.
  • Small diameter, light, flexible and in an easily identifiable light blue colour.
  • Ingenious design: 4 wires of helical construction, compressed and connected on an extruded central core, insensitive to dust and metal particle contamination, preventing false alarms.
  • Fixing clips available to fasten the sense cables.
  • A set of TTK BUS 8723 jumper cables and connection accessories gives continuity to each circuit.

Benefits

  • Detects and pin-points the location of a water/base leak to the nearest metre along the length of the cable.
  • Detects and localizes cablebreak on the cable.
  • Short drying time.
  • The FG-EC sense cable is a non-absorbent design that can be reused after leaks, reducing the maintenance costs.
  • Easy installation with pre-finished male and female connectors.
  • Flexible design: in both liner and sector mode (via FG-DTC box).

Cable 3D_eng_medium
