Oil Leak Detection Locating Solution

With FG-NET Unit

This oil leak detection solution contains FG-NET monitoring digital unit, FG-OD oil leak detection sense cable and oil system accessories. FG-BBOX can be added to increase the FG-NET unit's capacity.

FG-NET system is a truly versatile system – a single control panel is capable of monitoring both water and oil leak detection circuits.  Hence TTK offers a complete leak detection solution in building application.

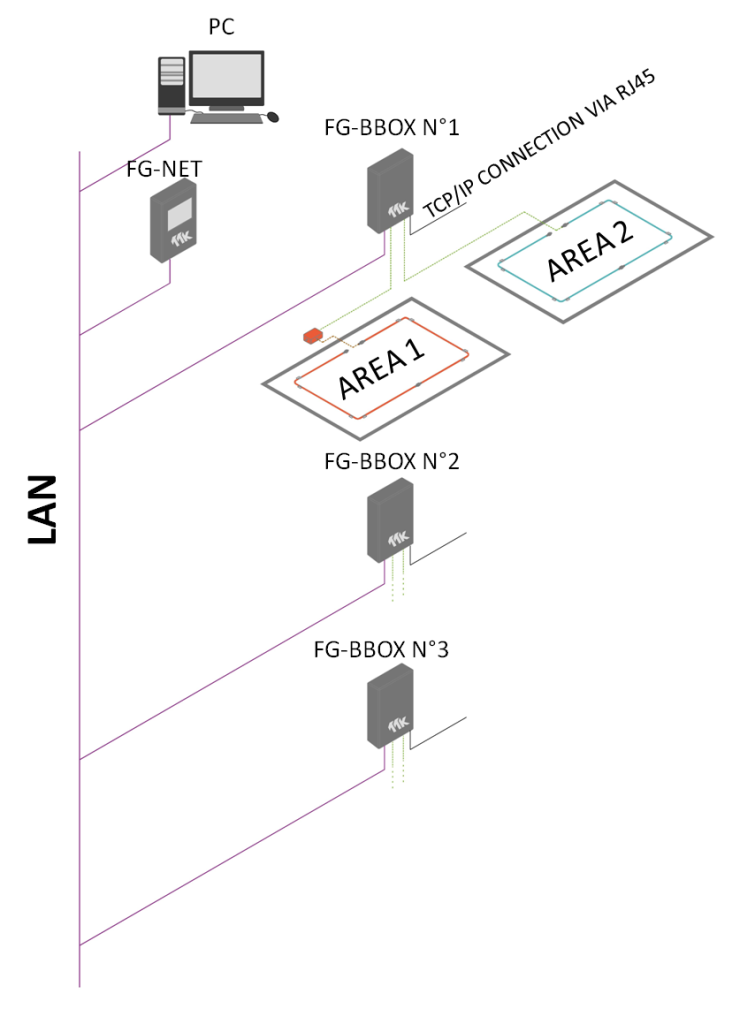

NET_BBOX

Digital Unit for Leak Detection FG-NET : The FG-NET unit is designed to be used for water, bases, acid and hydrocarbon leak detection. A single control panel is capable of monitoring both water and oil leak detection circuits. Ideal for mission critical areas such as data centers, trading floors, semi-conductor plants, generator rooms, FG-NET unit can display a precise location (to the nearest metre for water/acid cables; on the section length for oil cables) on a dynamic map. It detects simultaneous leaks hence avoid “a leak hide another” risk. Furthermore, the FG-NET digital unit can transmit the leak information to other LAN-connected equipments (such as BMS) via TCP/IP and JBUS/MODBUS communication protocols.

Satellite Device FG-BBOX: Can be added if necessary. The FG-BBOX is a satellite device of the TTK FG-NET Digital Unit. It is monitored by FG-NET via a standard Ethernet network. It expands FG-NET to manage two additional circuits of sense cables with up to 1200 metres of additional Sense Cables.

Oil Sense Cable FG-OD : FG-OD is the latest innovative technology in oil detection. It is a fast response, re-usable and ATEX approved oil leak detection sense cable.

Water leak detection sense cable FG-EC The FG-EC sense cable detects and pin-point locates water & base liquid leak at any point along the cable. It is designed to be connected on FG-SYS or FG-NET digital unit. The typical applications are data centres, trading floors, high value and mission critical infrastructure.

Acid leak detection sense cable FG-AC : FG-AC sense cable detects and pin-point locates acid leak at any point along the cable. It is designed to be connected on FG-SYS or FG-NET digital unit. The typical applications are laboratories, fab plants, cleanrooms, etc. in order to provide permanent protection to limit the financial consequences of an undetected acid leak. The FG-AC sense cable is made in corrosion and abrasion resistant cable that can be reused after cleaning.

Accessories for water / acid leak detection systems : TTK leak detection systems offer a full range of connection accessories and kits as diversion boxes, leading cables, end terminations. These items assure a proper functioning of the systems.

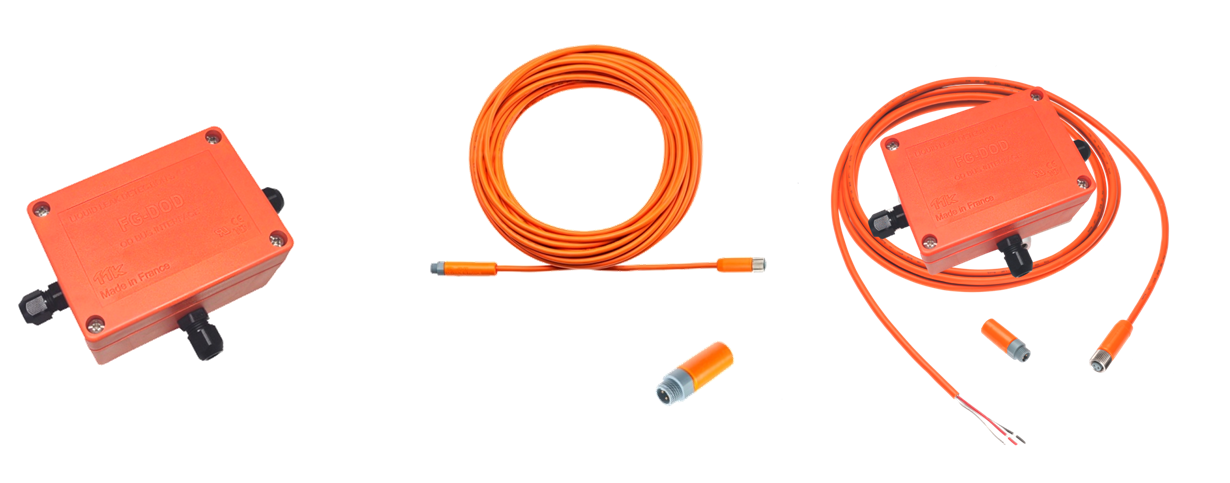

Accessories for oil leak detection systems : TTK leak detection systems offer a full range of connection accessories and kits as diversion boxes, leading cables, end terminations. These items assure a proper functioning of the systems.
